SPC WPC PVC Plastic Waste Crushing and Grinding System

Our SPC WPC PVC crushing and grinding system is a high-performance solution specifically engineered for processing rigid plastic scraps such as SPC (Stone Plastic Composite) flooring, WPC (Wood Plastic Composite), and PVC profiles or sheets. It combines coarse crushing with fine grinding in a single unit, efficiently transforming large production waste, off-cuts, and rejected parts into uniform, fine powder.

Spread the love

Contact Now

Call Us For Any Inquiry

+86-139 1329 4389

SPC WPC PVC Plastic Waste Crushing and Grinding System Introduction:

Our crushing and grinding machine is engineered for processing rigid plastic scraps such as SPC flooring, WPC (Wood Plastic Composite), and PVC profiles or sheets. It combines coarse crushing with fine grinding in a single unit, efficiently transforming large production waste, off-cuts, and rejected parts into uniform, fine powder.

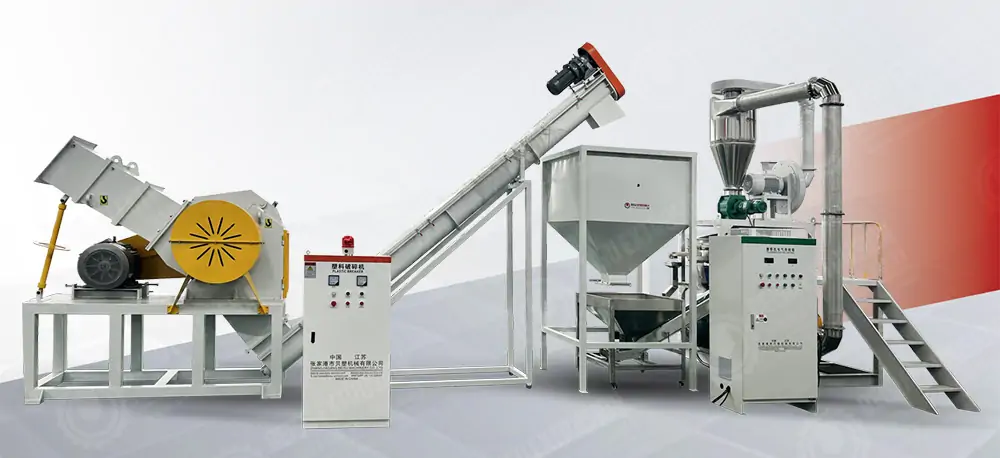

Crushing and Grinding System

This output is ideal for direct recycling, re-pelletizing, or reuse as raw material, significantly enhancing resource efficiency and reducing production costs.

Working Principle of Crushing Pulverizing Milling Machine：

Material is fed into the crushing chamber through the feed inlet and is initially crushed by the interaction of high-speed rotating moving blades and fixed stationary blades. Subsequently, the crushed material enters the grinding chamber under the action of airflow or machinery, where it is further ground into fine powder by impact, shearing, and friction between the high-speed rotating grinding disc and the fixed grinding disc. Powder that meets the fineness requirements is discharged through a screen, while particles that do not meet the requirements continue to be ground in the chamber until the requirements are met.

Advantages of Crushing and Pulverizing System：

● Powerful Crushing Capacity: Utilizing a high-strength blade structure and optimized power configuration, it easily handles high-hardness and high-toughness materials such as SPC and WPC, achieving high crushing efficiency and large processing capacity.

● Precision Grinding Technology: An integrated high-efficiency grading grinding system allows for precise control of output fineness by adjusting the screen aperture, producing uniform and fine powder to meet the requirements of high-quality recycled materials.

● Intelligent Automation: The PLC control system is easy to operate, enabling one-button start/stop, automatic overload protection, and reverse rotation. The equipment operates stably, effectively reducing manual intervention and maintenance.

● Low Energy Consumption and High Return: Optimized power matching and streamlined crushing chamber design ensure high output with low energy consumption, quickly recovering investment costs and resulting in significant economic benefits.

● Rugged and Durable Design: Core components such as blades and grinding discs are made of special wear-resistant alloy steel and undergo special heat treatment, resulting in strong wear resistance and a long service life.

Crushing and Grinding System CAD:

Crushing and Grinding System CAD

SPC WPC PVC Crushing and Grinding Machine Video:

1111

Technical Parameter:

	SWP-400	SWP-500	SWP-560	SWP650	SWP-800	SWP-1200
Moving knife(pcs)	5	5	10	10	10	12
Static knife(pcs)	2	2	4	4	4	4
Blade specification(mm)	31510022	41510022	25010022	30010025	40010025	30010025
Motor power(kw)	15	18.5	22-30	37	45	55
Screen plate thickness	10mm	10mm	10mm	12mm	12mm	12mm
Material of kinfe	Osicr or SKD	Osicr or SKD	Osicr or SKD	Osicr or SKD	Osicr or SKD	Osicr or SKD
Output(kg/h)	200-300	300-350	350-500	450-650	650-800	800-1000
Spindle diameter(mm)	110	118	110	120	140	160
Source voltage	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz
Dimensions(mm)	1850x900x1630	1850x1050x1680	2050x1150x1730	2400x1350x1850	2550x1550x1950	2050x1650x1900
Weight(kg)	1200	1300	1600	2100	2300	2800
